From GO MicroServices
to C# All in one

About me

Vincent Bourdon

Lead dev of SMAC team

Dev .NET since 2001

What is SMAC app ?

Backoffice APP to manage merchandising on sale
Frontend done using React / Typescript
Backend done Go microservices using GRPC and Kafka

Plan

Why ?
How ?
Architecture changes
Code changes

GraphQL
Data Access Layer
Api Client
Notification System
Conclusion

Why ?

CHANGE SOMETHING THAT WORKS

The app is coded in Golang
But all the original team members are gone
We tried to hire new Go developers

Guess what !

no candidate in 9 months !

Then I took the decision to migrate all the code to C#

I’m so much better dev in .NET

Veepee has a lot of good .NET dev who can ask for mobility

The RISK

of migration is less than having nobody to maintain and make evolution on the code

HOW ?

Fresh new team and 3 months

The Dev Team

Onur
The Junior
“I have a question”

Eduardo
The Senior
“It makes sense”

Vincent
The Lead
“I’m pretty sure”

Current state ?

The go code is not bad and we should be able to recode 1 for 1.

Where to start ?

Bottom / up or Top / down ?

By microservice ? 🤔

We plan to do it by service in bottom /up way.

But we discovered a big mess of services dependencies

Spaghetti

Oriented

Architecture

After few time we have started everything and finished nothing.

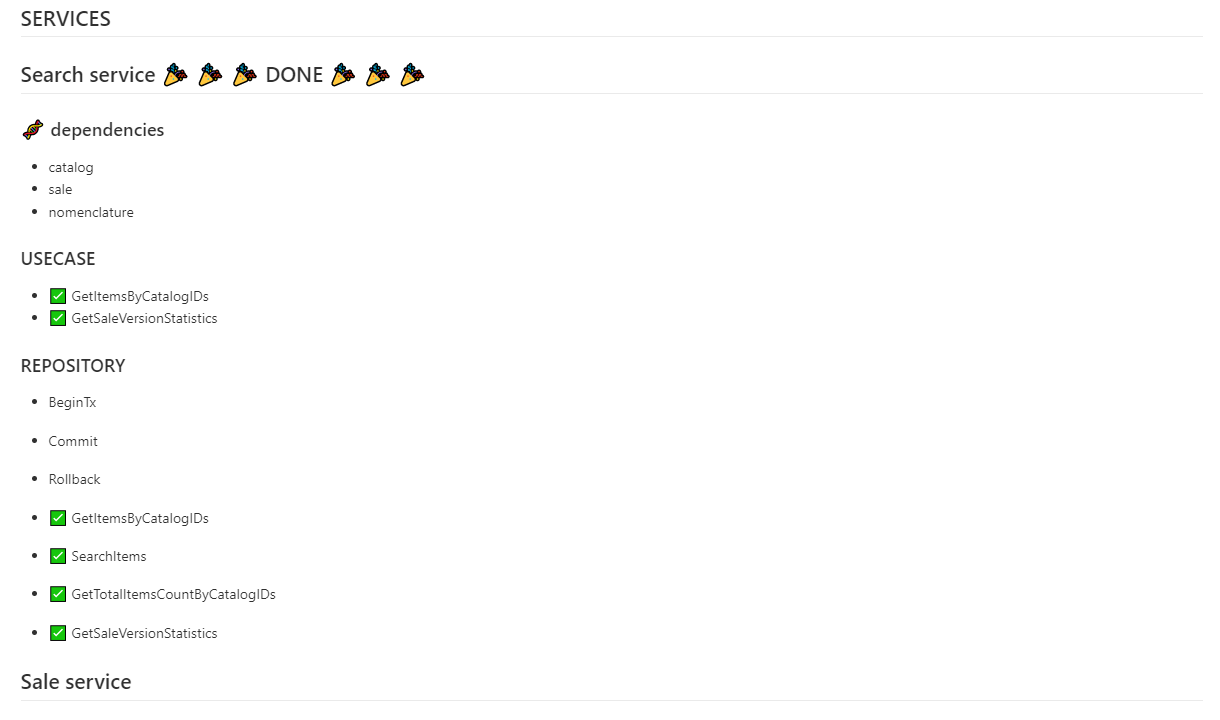

So I created a markdown file listing all functions to port.

How we test ?

GraphQL as a contract

Frontend as test interface.

We added some tests : unit and integration and E2E

And we already have automated test (UI and API tests)

from Quality Assurance

Thank Christopher 💘

Architecture changes

Make it Simple as stupid

no more microservices 😮
no more GRPC 🤨
no more kafka (for internal notification) 😶
Embeded frontend

All in one !

Some calls this “monolith”, I call this application

Less Waste

Each service must be Resilient and have high availability.

So we deploy on two Data Center at least twice

➡️ 4 pods by micro-service ( 9 services )

Then need load balancing, configuration, monitoring, alerting, logging …

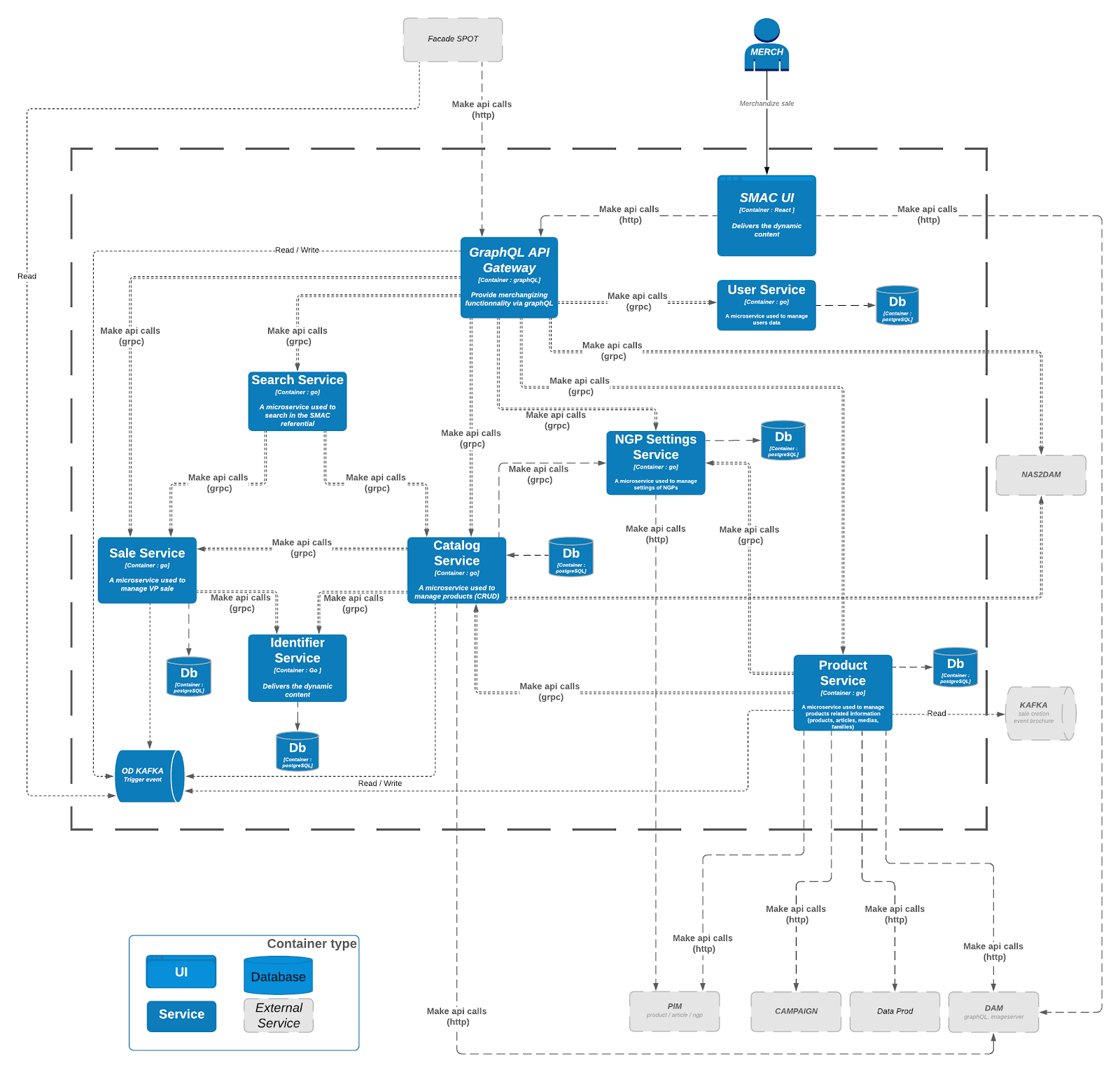

C2 model

Code Changes

to

What about typing ?

Avoid primitive obsession

So many string everywhere 🥵

use string

// Usecase represents the sale's usecase interface
type Usecase interface {
	CheckRules(ctx context.Context, saleVersionID string, checkTypes []model.CheckRuleType) ([]*model.CheckRule, error)
	CreateSale(ctx context.Context, sale *model.Sale) (*model.Sale, error)
	CreateSaleVersion(ctx context.Context, saleID, name, fromVersionID string, isPublish bool) (*model.Version, error)
	GetSale(ctx context.Context, id string) (*model.Sale, error)
	GetSaleByVersionID(ctx context.Context, versionID string) (*model.Sale, error)
	UpdateSale(ctx context.Context, sale *model.Sale) error
	PublishSaleVersion(ctx context.Context, versionID string) (bool, error)
	ResetSaleVersion(ctx context.Context, versionID string, scopes []model.ResetScope) (*model.Version, error)
	NotifyIfSaleReady(ctx context.Context, versionID string) error
	HandleCampaignDateChanges(ctx context.Context, campaignCode string, channels []common_kafka.CampaignChannel) error
}

In GO we can use https://github.com/google/uuid

got Guid

public interface ISaleUsecase
{
    Task<CheckRule[]> CheckRules(Guid saleVersionID, CheckRuleType[] checkTypes);
    Task<Models.Sale> CreateSale(Models.Sale sale);
    Task<DomainVersion> CreateSaleVersion(string saleID, string name, Guid? fromVersionId, bool isPublish);
    Task<Models.Sale?> GetSale(string saleID);
    Task<Models.Sale[]?> GetSales(string[] saleIDs);
    Task<Models.Sale?> GetSaleByVersionId(Guid versionId);
    Task<int> UpdateSale(Models.Sale sale);
    Task<DomainVersion> ResetSaleVersion(Guid versionID, ResetScope[] scopes);
    Task PublishSaleVersion(Guid versionID);
    Task NotifyIfSaleReady(Guid versionID);
    Task NotifyOnSaleCreated(string id, Guid versionId, string name, string campaignCode, CountryCode countryCode);
    Task HandleCampaignDateChanges(string campaignCode, Channel[] channels);
}

use more string !

languageByCountryCode = map[string][]string{
	"at": {"de"},
	"be": {"en", "nl", "fr"},
	"ch": {"fr", "de"},
	"de": {"de"},
	"dk": {"da"},
	"es": {"es"},
	"fr": {"fr"},
	"gb": {"en"},
	"it": {"it"},
	"lu": {"en", "fr"},
	"nl": {"en", "nl"},
	"pl": {"pl"},
}

got Enum

ENUM with JsonStringEnumConverter 💖

/// List of handled language
public enum Languages { da, de, en, es, fr, it, nl, pl }

/// List of handled countries
public enum CountryCode { AT, BE, CH, DE, DK, ES, FR, GB, IT, LU, NL, PL }

public static readonly IDictionary<Languages, string> CultureByLanguage =
	new Dictionary<Languages, string>
	{
		{ Languages.da, "da-DK" },
		{ Languages.de, "de-DE" },
		{ Languages.en, "en-GB" },
		{ Languages.es, "es-ES" },
		{ Languages.fr, "fr-FR" },
		{ Languages.it, "it-IT" },
		{ Languages.nl, "nl-NL" },
		{ Languages.pl, "pl-PL" }
	};

got cultureinfo

But we don’t use it anymore for this usecase

use interface{}

jsonStruct := struct {
		Code             string            `json:"code"`
		Name             string            `json:"name"`
		NameTranslations map[string]string `json:"translations"`
		Value            interface{}       `json:"value"`  // can be any thing. Really ?
		ValueCode        string            `json:"valueCode"`
		Properties       []*Property       `json:"properties"`
	}{}

use generic

public record Property(
    string Code,
    string Name,
    I18nString NameTranslations,
    string? Value,
    I18nString? ValueTranslations,
    string ValueCode,
    bool AllowMultiplicity,
    Property[] Properties
);

public class I18NObject<T>{}

public class I18nString : I18NObject<string>{}

Yes, GO has this now…

use map with empty value 🤐

distinctMediaIDs := make(map[string]struct{})
//....
distinctMediaIDs[m.ID] = struct{}{}

use HashSet

HashSet<string> distinctMediaIDs = new();
//....
distinctMediaIDs.Add(m.Id);

loop for ever

use for loop everywhere

func (uc *usecase) GetDistinctNGPCodesFromArticles(ctx context.Context, articles []*model.Article) []string {
	distinctNGPCodes := make(map[string]struct{})   // <-- struct {}  ???
	for _, aa := range articles {
		distinctNGPCodes[aa.NgpCode] = struct{}{}  // <--  WHAT ??
	}

	// Slice of NGP codes
	ngpCodes := []string{}
	for ngpCode := range distinctNGPCodes {    // <-- one more loop
		ngpCodes = append(ngpCodes, ngpCode)
	}

	return ngpCodes
}

got linq

public string[] GetDistinctNGPCodesFromArticles(Models.Article[] articles) =>
	articles
		.Select(x => x.NgpCode)
		.Distinct()
		.ToArray();

LINQ in go => https://godoc.org/github.com/ahmetb/go-linq

use Tuple

func (uc *usecase) GetLocalizedTemplates(/*..*/)
 (map[string][]*model.TemplateSection, map[string][]*model.TemplateSection, error)
 {}

got named tuple !

(Dictionary<string, TemplateSection[]> sizeLabelTemplates,
 Dictionary<string, TemplateSection[]> nameTemplates) =
            await _ngpSettingsUsecase.GetLocalizedTemplates(aggregationNgpCodes, countryCode);

got Expression body

Easy to reduce code to one line

public Task<IEnumerable<Models.Sale>> GetAllSalesAsync() => QueryAllAsync<Models.Sale>();

Async

Concurrent

Parallel

🤔

Is Go routine really easy ?

not so sure in long term.

goroutine for paralism

pc := make(chan *Pair, len(inputs))
// Generate identifier for each input
for k, i := range inputs {

	// One goroutine per input in order to speed it up
	go func(key string, meta map[string]string, isRandom bool) {
		identifier, err := uc.generateIdentifier(ctx, meta, isRandom)
		if err != nil {
			ec <- err
			return
		}

		pc <- &Pair{
			Key:   key,
			Value: identifier,
		}
	}(k, i.GetMeta(), i.GetIsRandom())
}

use Task and TPL

// System.Threading.Tasks.Parallel
Parallel.ForEachAsync(inputs, async (k, i) => { .... });

// PLINQ
inputs.AsParallel().Select(x => {....} );

// or create list of task and wait
await Task.WhenAll(tasks);

use Task for all I/O

// DATABASE
public interface ISaleRepository
{
    Task<string> CreateSaleAsync(Models.Sale sale);
    Task<Models.Sale?> FindSaleAsync(Expression<Func<Models.Sale, bool>> where);
}

// WEB CLIENT
public interface IPimClient
{
    Task<Product[]?> GetProductsByOperationCodeAsync(string operationCode, string language);
    Task<Article[]?> GetArticlesAsync(string[] articleIDs);
    Task<Article[]> BulkGetArticlesAsync(Guid[] articleIDs, bool withTranslations);
}

Lines of code

Language	Lines of code
C#	~~18 008~~
C#	20 079
Go	133 768

We saved 113 689 LOC
*test included

What do we use ?

Libraries, nuget …

GraphQL

We should HotChocolate

Very performent
Easy to use
Annotation-based / Code-first / Schema-first
Subscription with WebSocket
Awesome with EF core
Banana cupcake

Data Access Layer

We use a ORM : RepoDB

Performant
easy to use
Work on many DBMS
A lot of feature (Bulk/Batch/Caching)

I also think about using EF core

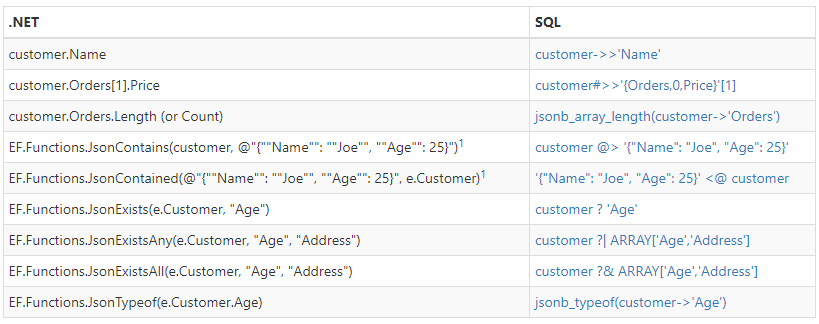

Cause it is more flexible and have great feature on PG jsonb

API client

We use Refit

automatic type-safe REST library

(Heavily inspired by Square’s Retrofit library)

public record TechnicalSheetsByFamily(int FamilyId, string Ft, string Subject);

public interface ISpotApi
{
    [Get("/api/v2/campaigns/events/{site}/technicalSheets/{familyId}")]
    Task<ApiResponse<TechnicalSheetsByFamily[]>>GetTechnicalSheetsByFamilyIdAndSite(string site, int familyId);
}

// Program.cs
builder.Services.AddRefitClient<ISpotApi>(refitSettings).ConfigureHttpClient(c=>
{
    c.BaseAddress = new Uri(configuration.GetValue<string>("Spot:Host"));
    c.DefaultRequestHeaders.Add("apikey", configuration.GetValue<string>("Spot:Apikey"));
});

Refit

Only defined interface
Use Source Generator
Use Httpclient
Easy to configure, add headers and bearer

Notification System

We replace Kafka by MediatR

In-process messaging with no dependencies.
Use generics
Very easy to migrate using same message

MediatR

public class SaleVersionCreatedHandler : INotificationHandler<SaleVersionCreated>
{
    private readonly ICatalogUsecase _catalogUsecase;

    public SaleVersionCreatedHandler(ICatalogUsecase catalogUsecase) =>
		_catalogUsecase = catalogUsecase;

    public Task Handle(SaleVersionCreated notification, ct cancellationToken) =>
	    _catalogUsecase.CloneCatalogTree(
			notification.VersionId,
			notification.FromVersionId,
			notification.IsPublish);
}
